Vailly Tempest Plan

SKU: VAIL:TEMPEST

$50.00

Wing span: 96"
OAL: 81.5"
Engine: 75 – 85 cc
Weight: 32 – 45 lbs

The Hawker Tempest was a British fighter aircraft primarily used by the Royal Air Force (RAF) in the Second World War. The Tempest was an improved derivative of the Hawker Typhoon, the type originally being known as the Typhoon II, which was intended to address the Typhoon's unexpected fall-off of performance at high altitude by replacing its wing with a thinner laminar flow design. Having diverged considerably from the Typhoon, it was chosen to rename the aircraft Tempest. The Tempest emerged as one of the most powerful fighters of the World War II and was the fastest propeller-driven aircraft of the war at low altitude.

From Wikipedia, the free encyclopedia

In Stock

Complete Your Build

Select accessories, engine options, landing gear, and wheels for your Vailly Tempest

No products in this category yet.

Product Description
Specifications

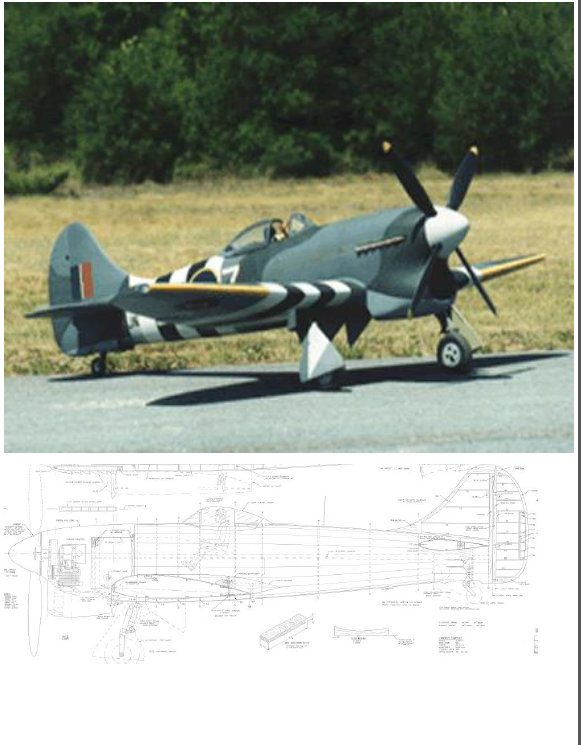

The HAWKER TEMPEST is scaled at 2.35 inches to the foot. The plans show an all built-up structure drawn full size and includes the installation of flaps and retracts. The retracts shown are available from Hank Likes, although other similar retracts may also be used. Check out our Giant Scale Retracts. Full size templates are also shown for all ribs, formers and other various parts. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page.The model may be built as a MK V or a MK VI by making the additions of the wing leading edge radiators. OR.. The model may also be converted to a MK II by using the fiberglass cowl from our 90 inch Sea Fury. All three versions are shown on the plans. See our scale Struts and Tailwheel elsewhere.Accessory parts available are fiberglass cowls, clear plastic canopy, aluminum spinner (for Mk V or Mk VI) with machined aluminum back plate and vacuum-formed dummy exhaust stacks and elevator shrouds. See our Struts and Tailwheel elsewhere in our Giant Scale Retracts section.Primary construction is light plywood, balsa and spruce using conventional “Tried and True” materials and building techniques. All structures (with the exception of the rudder) are built-up and are either sheeted with 1/8" or 3/32" balsa. The rudder is fabric covered as per the prototype. No foam is used what-so-ever. A four to six channel radio is required. The Tempest uses 5.50 diameter wheels and a 1/5 scale WW II pilot figure.

Specifications: Tempest

Scale: 1/5
Inches to the foot: 2.35" - 1'
Length: 81.5"
Weight: 32-45lbs
Wing loading: 45-83oz/sqft
Wing area: 1650 sq.in
Wing span: 96"
Wing incidence at root: degrees
Stab incidence: degree
Dihedral:
Power: 75-85cc gas
Washout at wing tip:
Aileron throws:
Elevator throws:
Rudder throws:
Flap degrees down: 40-50
Cowl length: 14.75"
Cowl height front: 13"
Cowl height rear: 13"
Cowl width front:: 8.5"
Cowl width rear: 8.5"
Engine offset degrees:
CG Location:

Requires:
Ziroli cowl
Ziroli canopy
Engine:75-85cc gas
Spinner:
Fuel tank:: 32oz
Control Horns:
Hinges:
Covering: 1oz fiberglass cloth and epoxy resin
Retracts Main
Tail gear strut
Retract Air Kit
Wheels Main: 5.5"
Wheels tail: 2.5"
Radio channels: 6 or more
Servos: Flaps (2)150-200oz MGBB, Ailerons (2)90+oz BB, Elevators (2)90+oz BB, Rudder (1)120+oz BB, Gear (1)50oz, Throttles (1)50oz BB

MG-metal gear BB-ball bearing
